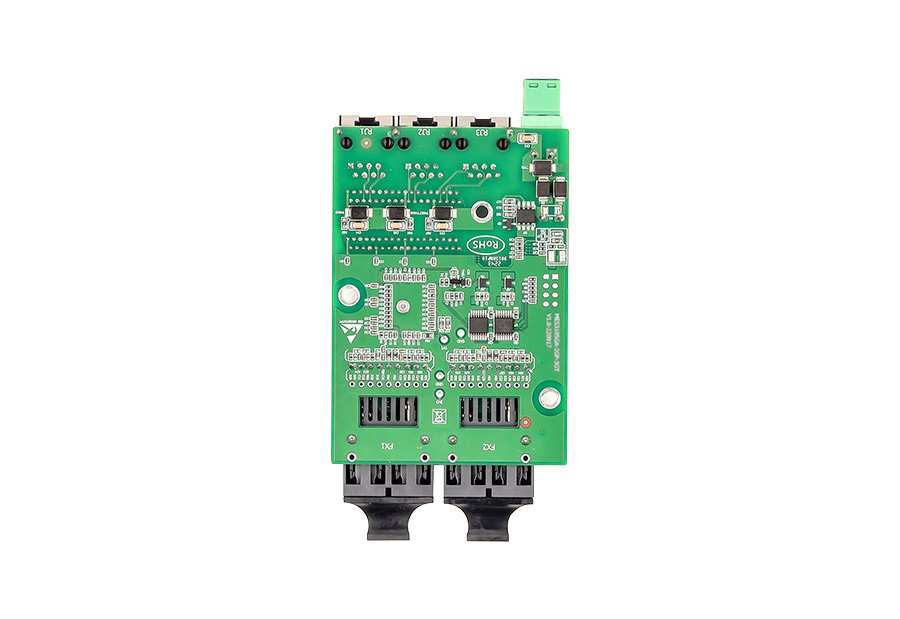

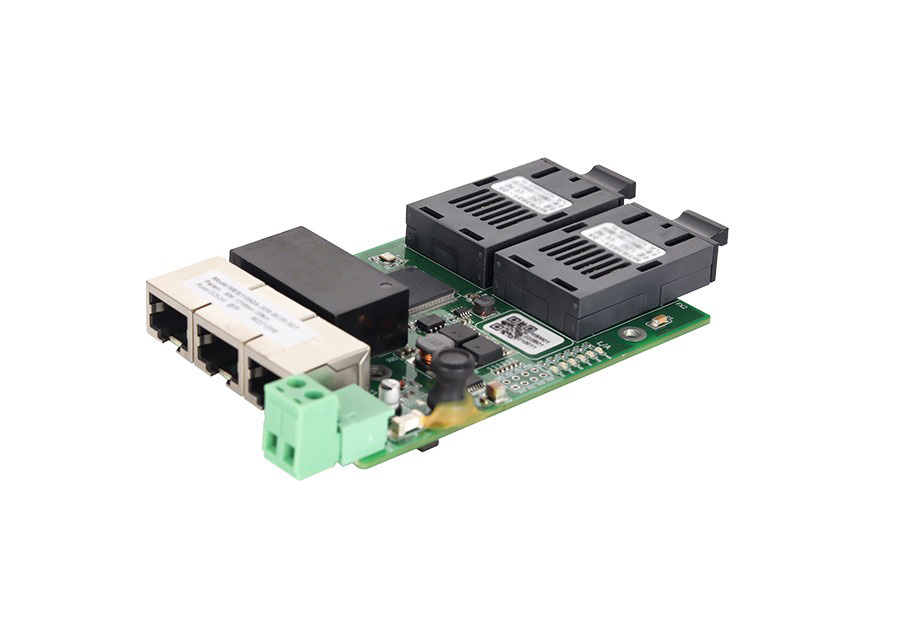

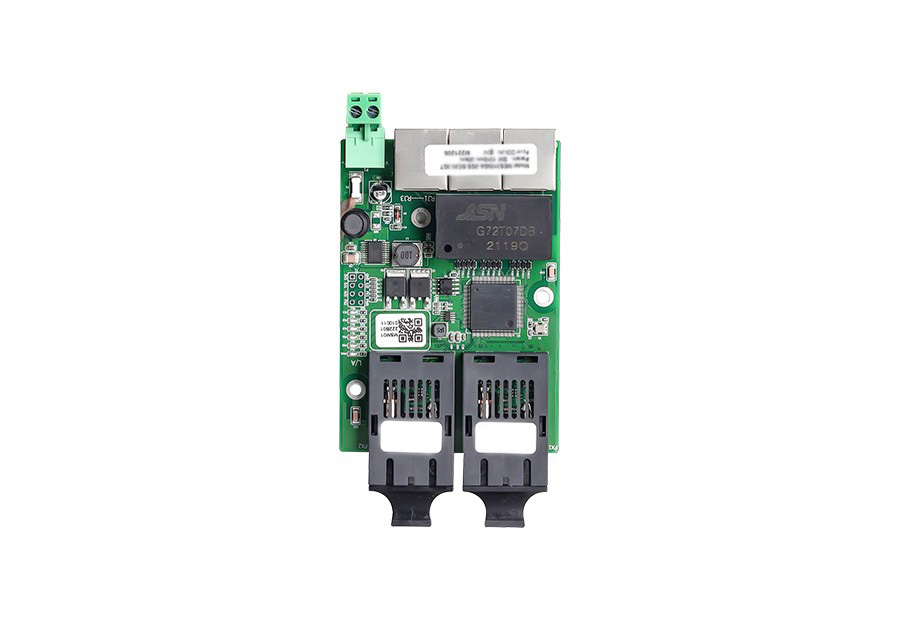

CES2105A-2F
5-Port Layer 2 Unmanaged Embedded Industrial Ethernet Switch
·2×100Base-FX ports (multi/single-mode, SC/FC/ST connector), 3×10/100Base-T(X) ports (RJ45 connector)
·100Base-FX ports support SC/FC/ST, single-mode/multi-mode, wavelength and transmission distance optional
·10/100Base-T(X) ports support full/half duplex and auto MDI/MDI-X, plug and play, convenient and fast
·Support DC5~32V power input and complies with intrinsically safe circuit design standards
·-40℃~+85℃ operating temp to meet the application needs of industrial environment
e
5-Port Layer 2 Unmanaged Embedded Industrial Ethernet Switch
·2×100Base-FX ports (multi/single-mode, SC/FC/ST connector), 3×10/100Base-T(X) ports (RJ45 connector)
·100Base-FX ports support SC/FC/ST, single-mode/multi-mode, wavelength and transmission distance optional
·10/100Base-T(X) ports support full/half duplex and auto MDI/MDI-X, plug and play, convenient and fast
·Support DC5~32V power input and complies with intrinsically safe circuit design standards
·-40℃~+85℃ operating temp to meet the application needs of industrial environment
e
Product Description
CES2105A-2F is a 5-port layer 2 100M unmanaged embedded industrial Ethernet switch designed a for industrial communication network applications. It meets intrinsically safe design requirements. This series of products supports 2×100Base-FX ports and 3×10/100Base-T(X) ports, and support single DC5~32V power input. The power supply supports anti-reverse connection, slow start, overcurrent and overvoltage protection, and adopts embedded Installations to meet the needs of various network sites. The hardware adopts fanless, intrinsically safe, wide-temperature design, compact size, selected industrial-grade components, and supports -40°C to +85°C operating temp. The power supply meets the requirements of intrinsically safe circuit design standards and has passed strict safety regulations and EMC tests, to meet the application requirements of harsh industrial environments.
Switch Capability | |
Processing Type | Store-and-Forward |
Backplane Bandwidth | 1Gbps |
Buffer Size | 96KB |
MAC Table Size | 2K |
Interface | |
100M Fiber Port | 2*100Base-FX fiber ports (SC/FC/ST, single-mode/multi-mode, wavelength and transmission distance are optional) |
100M Copper Port | 3*10/100Base-T(X) auto-sensing RJ45 ports, support full/half duplex and auto MDI/MDI-X |
Status LED | Power supply status LED, interface status LED, support external export of status LED signal |
Power Supply | |
Input Voltage | DC5~32V, support anti-reverse connection and over-current protection |
Power Consumption | ＜1.95W@DC12V |
Connection | 2-position 5.08mm pitch terminal blocks |
Physical Characteristics | |
Dimensions | 94×66×13.6 mm |
Installations | Embedded installation |
Weight | About 71.5g |
Working Environment | |
Operating Temp | -40℃~+85℃ |
Storage Temp | -40℃~+85℃ |
Relative Humidity | 5%~95%(non-condensing) |
| Name | Version | Resources |
| CES2105A-2F Datasheet | V1.0 | Download |
Standard Model | 100M Fiber Port | 10/100M Copper Port | Input Voltage |
CES2105A-2F(M/S) | 2 | 3 | DC5~32V |
