Product Description

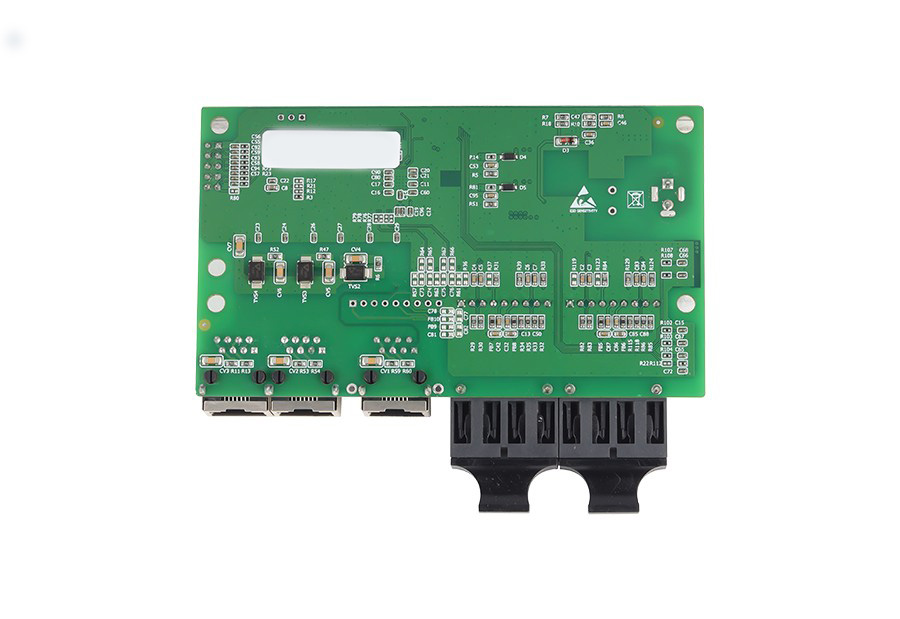

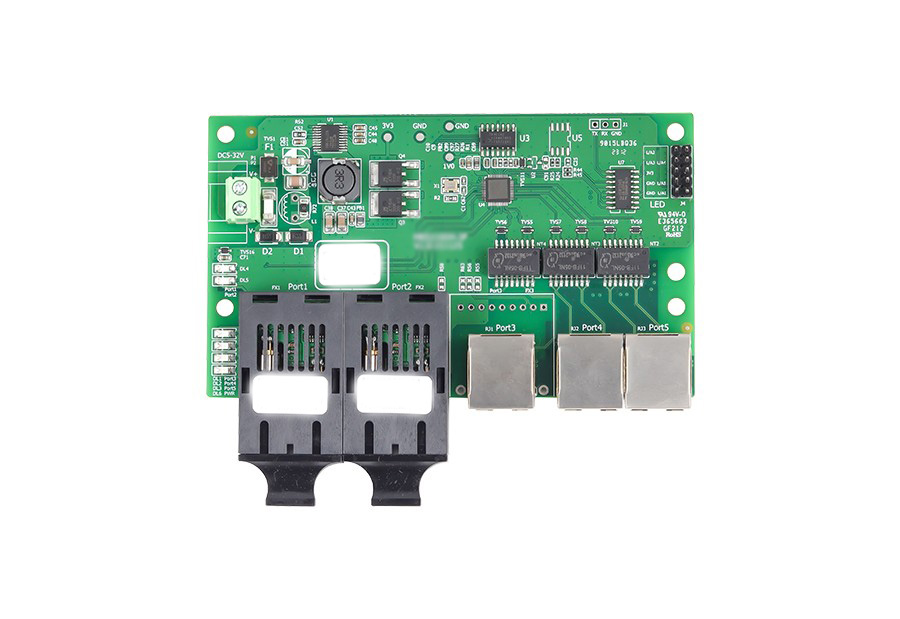

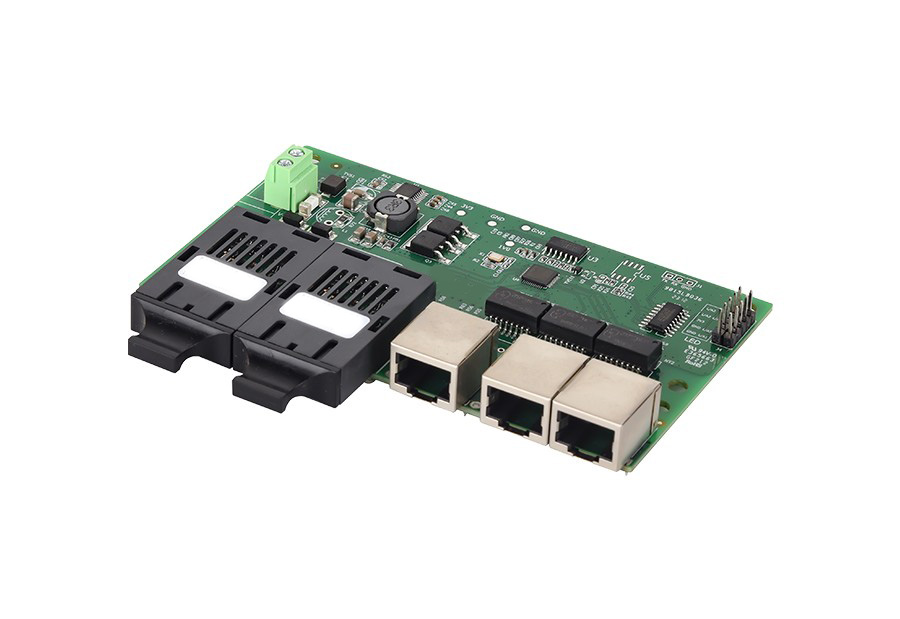

CES2105M series is a 5-port Layer 2 100M unmanaged embedded industrial Ethernet switch for industrial communication network applications. It meets intrinsically safe design requirements. This series of products supports 5x100M Ethernet ports, available with 2x100M fiber ports+3x100M copper ports, 3x100M fibers + 2x100M copper ports and other combinations. It supports DC5~32V input voltage, and the power supply supports anti-reverse connection, slow start, over-current and over-voltage protection. Each 100M copper port has 10/100M adaptive function, supports full-duplex or half-duplex mode, and can automatically perform MDI/MDI-X connection, making industrial communications smoother, more efficient, reliable and faster. The hardware adopts fanless, intrinsically safe, wide-temperature design, compact size, selected industrial-grade components, and supports -40~+85℃ operating temperature. The power supply meets the requirements of intrinsically safe circuit design standards and has passed strict safety regulations and EMC tests to meet the application requirements of harsh industrial environments. Products can be widely used in industrial automation, integrated energy, intelligent transportation, smart cities, smart mines and other fields.
