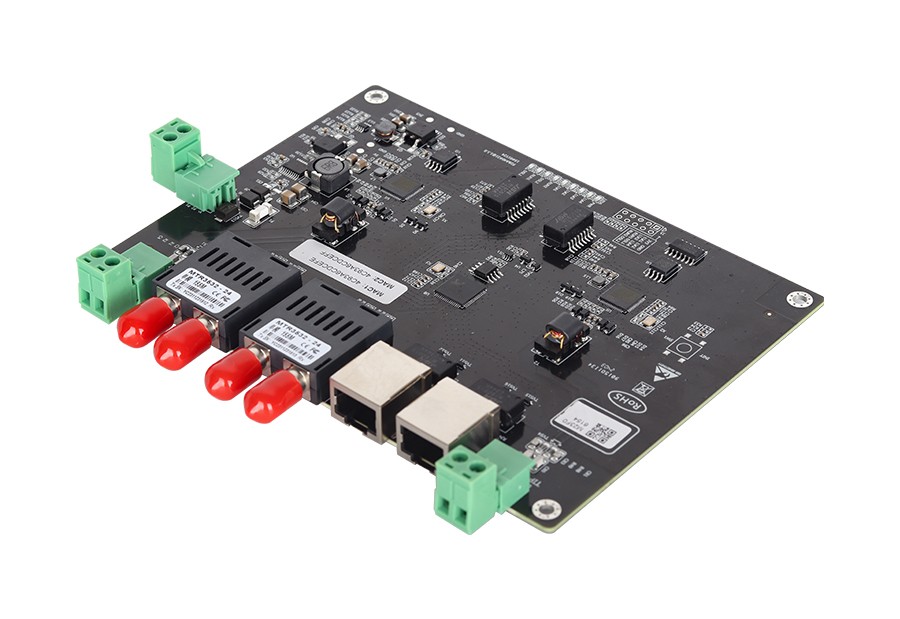

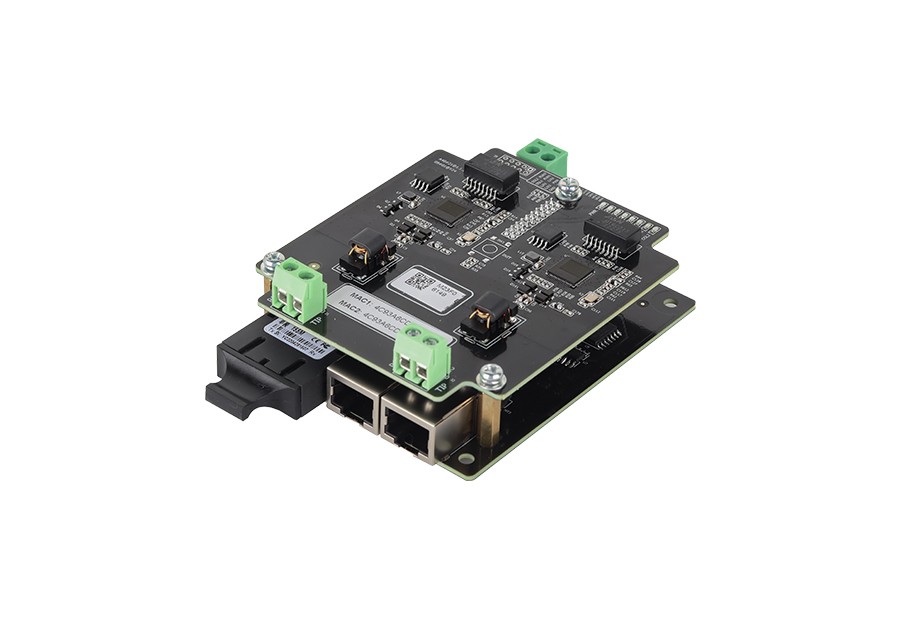

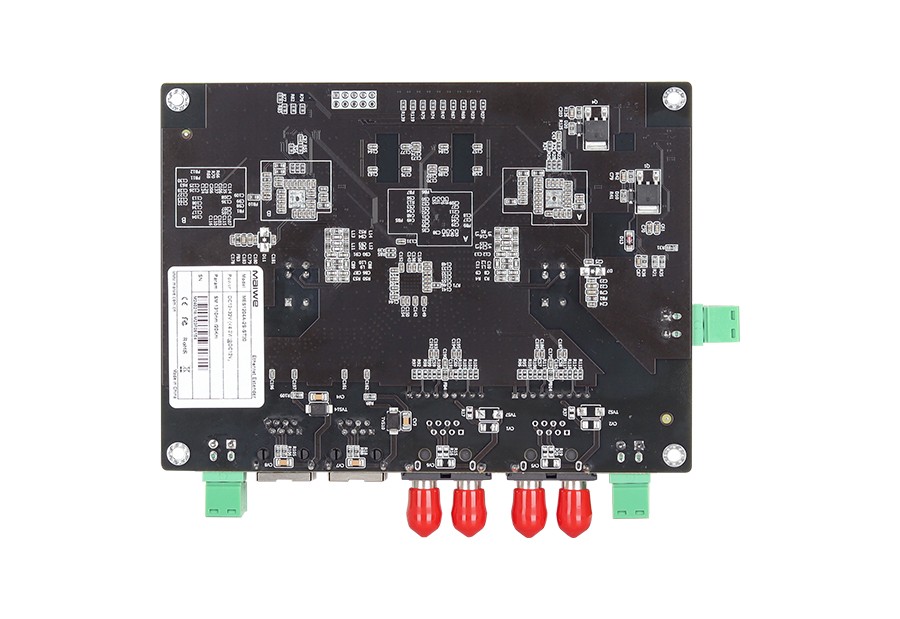

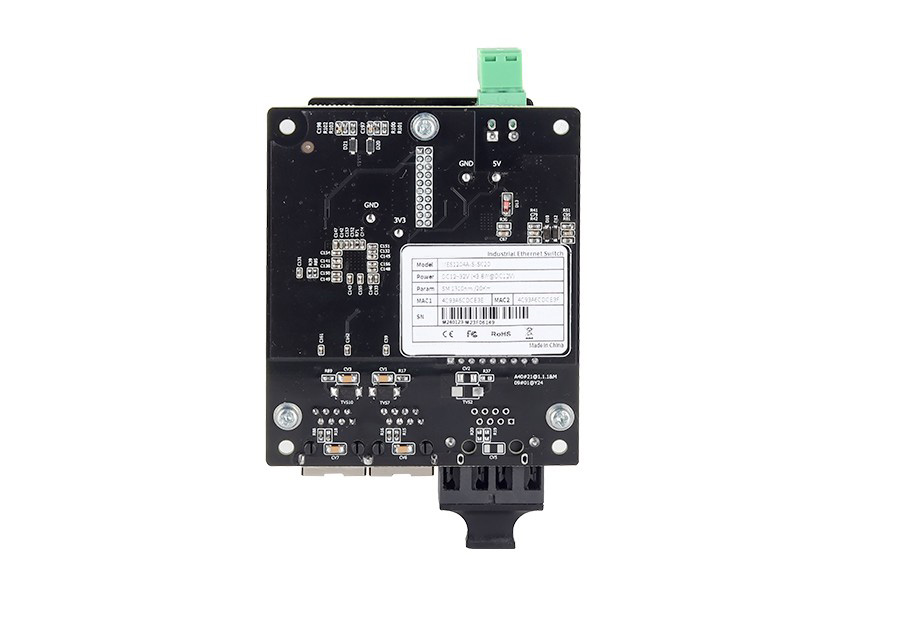

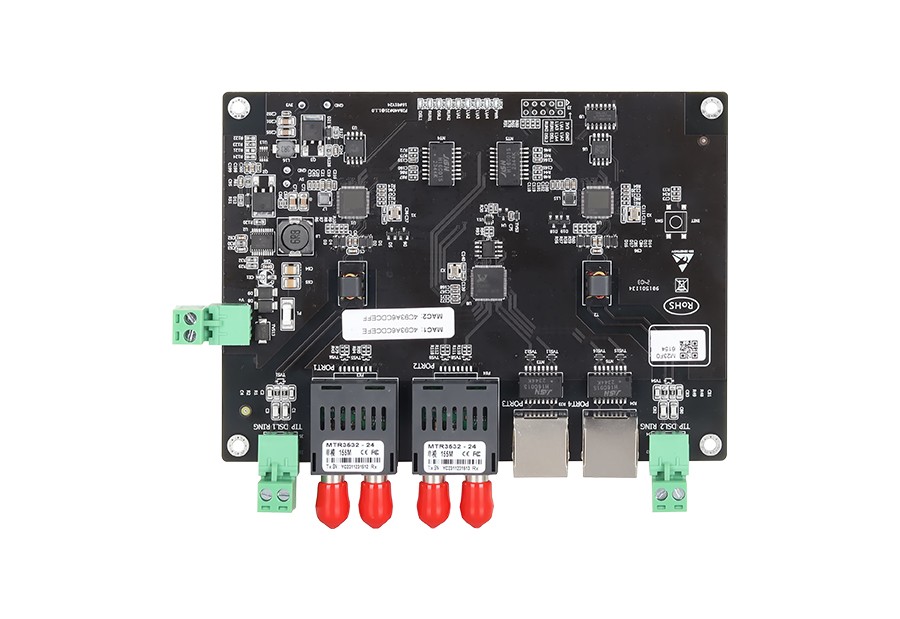

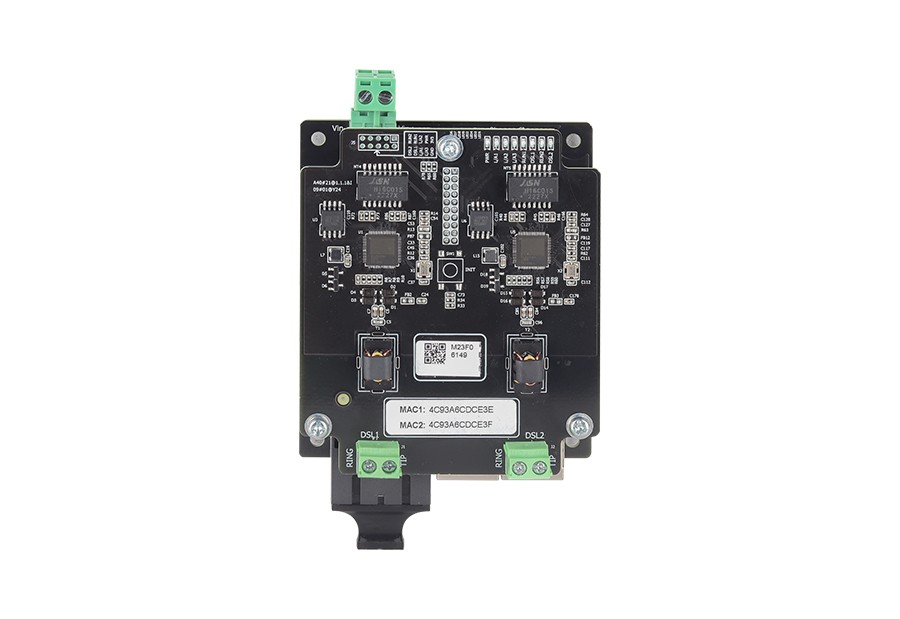

CES1204A
Embedded Intrinsically Safe DSL Ethernet Extender
·4*100M ethernet ports, 2*DSL ports. The Ethernet port supports 4 fiber ports, or 2 fiber and 2 copper options
·The DSL interface can perform long-distance communication through twisted pair cables, extending the transmission distance of the Ethernet copper port, up to 1.1km
·The fiber port supports SC/FC/ST, single-mode/multi-mode, wavelength, and transmission distance are optional
·The copper port supports 10/100M, full/half duplex, auto MDI/MDI-X, plug and play
·Comply with IEEE1901 and HomePlug-AV (HPAV) standards
· Support operating temperature of -20℃~+75℃, meeting application requirements in harsh industrial environments
Embedded Intrinsically Safe DSL Ethernet Extender
·4*100M ethernet ports, 2*DSL ports. The Ethernet port supports 4 fiber ports, or 2 fiber and 2 copper options
·The DSL interface can perform long-distance communication through twisted pair cables, extending the transmission distance of the Ethernet copper port, up to 1.1km
·The fiber port supports SC/FC/ST, single-mode/multi-mode, wavelength, and transmission distance are optional
·The copper port supports 10/100M, full/half duplex, auto MDI/MDI-X, plug and play
·Comply with IEEE1901 and HomePlug-AV (HPAV) standards
· Support operating temperature of -20℃~+75℃, meeting application requirements in harsh industrial environments
Product Description
CES1204A series is a dual DSL embedded intrinsically safe Ethernet extender designed and developed specifically for industrial communication network. It supports 4*100M Ethernet ports, 2*DSL ports and DC12~32V power input. The extender meets intrinsic safety design requirements. This product can be connected in pairs through DSL ports, and transmit Ethernet signals over long distances through a pair of twisted pair telephone lines. The transmission distance can reach 1.1km, which breaks free from the 100-meter limit of copper ethernet cable. The DSL ports comply with IEEE1901 and HomePlug-AV (HPAV) standards. The 100M Ethernet ports support 4*copper ports, or 2 fiber and 2 copper ports optional. Each 100M port has auto-sensing 10/100M function, supports full-duplex or half-duplex mode, and support auto MDI/MDI-X. Tested to meet the application requirements of harsh industrial environments, it can be widely used in industrial automation, integrated energy, smart cities, rail transit, intelligent transportation, smart factories and other fields.
Switch Capability | |
Backplane Bandwidth | 1.6Gbps |
Buffer Size | 768kbit |
MAC Table Size | 2K |
Interface | |
DSL Port | 2*DSL ports, using 2-position 5.08mm spacing terminal blocks, communication distance 1.1km (10Mbps) (Cable requirements: 2-core twisted pair telephone line with wire diameter 0.5mm2 or above, twisting distance less than 25mm |
100M Fiber Port | 2*100Base-FX fiber port (SC/FC/ST, single-mode/multi-mode, wavelengths and transmission distances are optional) |
100M Copper Port | 2/4*10/100Base-T(X) auto-sensing RJ45 ports, support full-duplex/half-duplex and auto MDI/MDI-X connection |
Status LED | Power indicator light, DSL operation indicator light, DSL interface indicator light, Ethernet interface indicator light, support external routing of indicator light signals |
Power Supply | |
Input Voltage | DC12~32V |
Power Consumption | ＜2.5W@DC12V (CES1204A), ＜4.3W@DC12V (CES1204A-2F) |
Connection | 2-pin with 5.08mm spacing terminal blocks |
Power Protection | Overcurrent protection, overvoltage protection, reverse connection protection, pre-charge |
Physical Characteristics | |
Dimensions | 150×110×13.6 mm |
Installations | Embedded |
Weight | 107g (CES1204A), 122g (CES1204A-2F) |
Working Environment | |
Operating Temp | -20℃~+75℃ |
Storage Temp | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Industry Standard | |
EMC | IEC 61000-4-5 (Surge): Level 2 (Power supply, ethernet port, DSL port: common mode ±1kV, differential mode ±0.5kV) IEC 61000-4-4 (EFT): Level 3 (Power supply, ethernet port, DSL port: ±2kV) |
Certification | CE, FCC, RoHS |
| Name | Version | Resources |
| CES1204A Datasheet | V1.0 | Download |
Standard Model | 100M Fiber Port | 10/100M Copper Port | DSL Interface | Input Voltage |
CES1204A | / | 4 | 2 | DC12~32V |
CES1204A-2F | 2 | 2 | 2 | DC12~32V |
