CES2103-F
3-Port Layer 2 Unmanaged Embedded Industrial Ethernet Switch
·1×100Base-FX port (multi/single-mode, SC/FC/ST connector), 2×10/100Base-T(X) ports (RJ45 connector)
·100Base-FX port supports SC/FC/ST, single-mode/multi-mode, wavelengths and transmission distances optional
·10/100Base-T(X) ports support full/half-duplex and auto MDI/MDI-X, plug-and-play
·Support DC9~24V power input, compliant with intrinsic safety circuit design standards
·Operating temperature range of -40°C to +85°C
3-Port Layer 2 Unmanaged Embedded Industrial Ethernet Switch
·1×100Base-FX port (multi/single-mode, SC/FC/ST connector), 2×10/100Base-T(X) ports (RJ45 connector)
·100Base-FX port supports SC/FC/ST, single-mode/multi-mode, wavelengths and transmission distances optional
·10/100Base-T(X) ports support full/half-duplex and auto MDI/MDI-X, plug-and-play
·Support DC9~24V power input, compliant with intrinsic safety circuit design standards
·Operating temperature range of -40°C to +85°C
Product Description

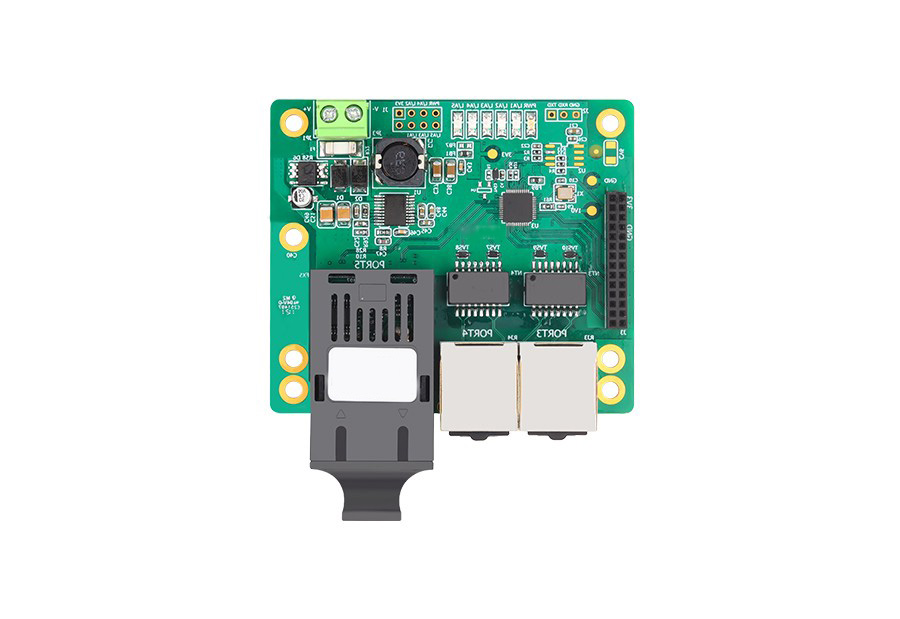

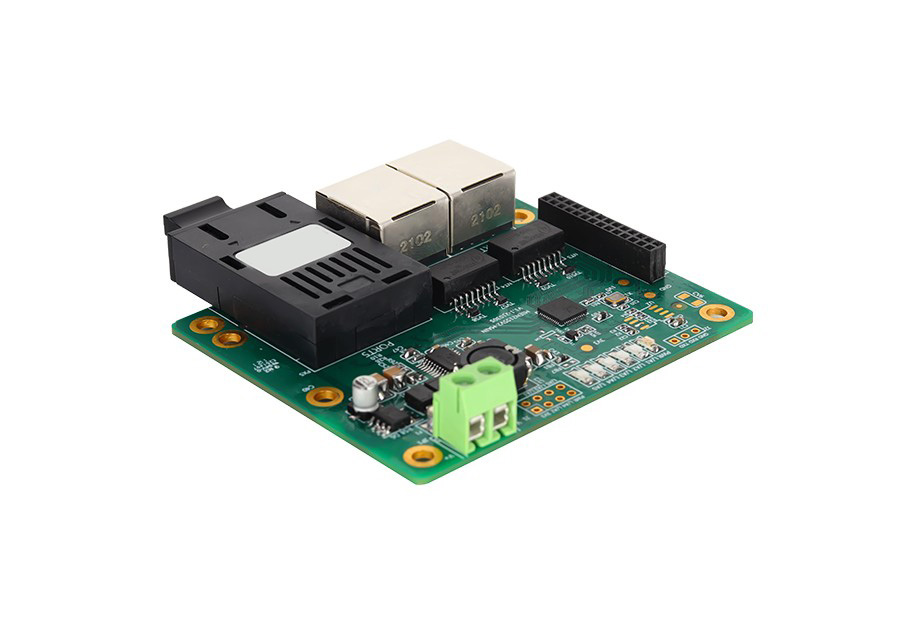

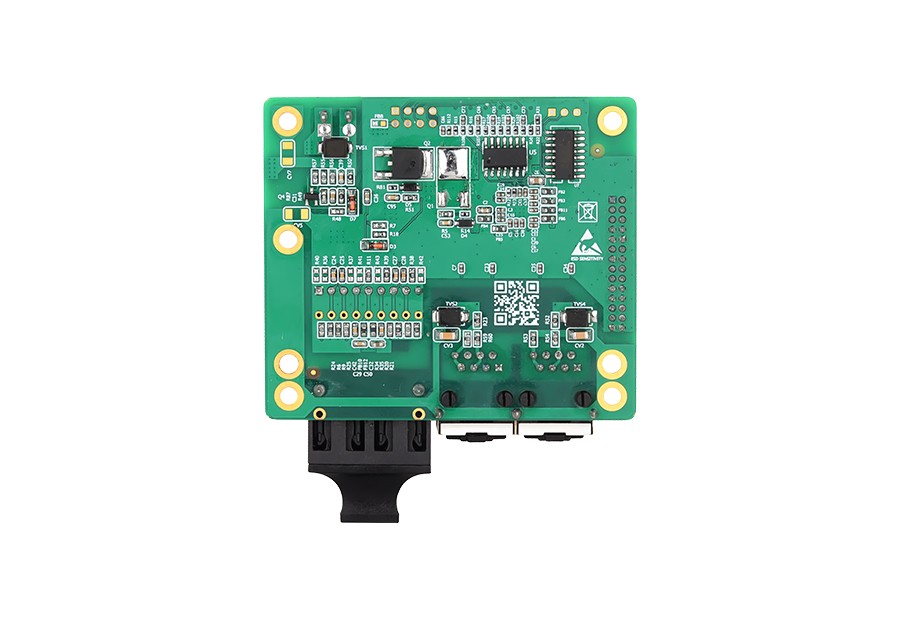

CES2103-F is a 3-port unmanaged embedded industrial Ethernet switch designed for industrial communication network applications. It complies with intrinsic safety design requirements. This product series supports 1×100Base-FX port and 2×10/100Base-T(X) ports, with single DC9~24V power input. The power supply features protection against reverse connection, soft start, overcurrent, and overvoltage protection. It is designed for embedded installation, catering to the needs of various network environments.
The hardware is designed with fanless, intrinsically safe, and wide temperature range considerations. It is compact in size, uses industrial-grade components, and operates within a temperature range of -40°C to +85°C. The power supply complies with intrinsic safety circuit design standards and has undergone rigorous safety and EMC testing to meet the demanding requirements of industrial environment applications.
This product can be widely applied in various fields, including industrial automation, comprehensive energy, intelligent transportation, smart cities, and intelligent mining.
Switch Capability | |
Processing Type | Store-and-Forward |
Backplane Bandwidth | 1Gbps |
Buffer Size | 96KB |
MAC Table Size | 2K |
Interface | |
100M Fiber Port | 1*100Base-FX fiber port (SC/FC/ST, single-mode/multi-mode, wavelengths and transmission distances are optional) |
100M Copper Port | 2*10/100Base-T(X) auto-sensing RJ45 ports, support full-duplex/half-duplex and auto MDI/MDI-X |
Status LED | Power indicator, interface indicator, support external indication signal |
Power Supply | |
Input Voltage | DC9~24V |
Power Consumption | ＜1.29W@DC12V |
Connection | 2-pin with 5.08mm spacing terminal connectors |
Physical Characteristics | |
Dimensions | 76×66×13.6 mm |
Installations | Embedded |
Weight | 49g |
Working Environment | |
Operating Temp | -40℃~+85℃ |
Storage Temp | -40℃~+85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Industry Standard | |
EMC | IEC 61000-4-2 (ESD): Contact discharge ±8kV, Air discharge ±15kV IEC 61000-4-5 (Surge): Power supply and network port: Common mode ±2kV, Differential mode ±2kV IEC 61000-4-4 (EFT): Power supply: ±2kV; Communication port: ±2kV |
Certification | CE, FCC, RoHS |
| Name | Version | Resources |
| CES2103-F Datasheet | V1.0 | Download |
Standard Model | 100M Fiber Port | 10/100M Copper Port | Input Voltage |
CES2103-F(M/S) | 1 | 2 | DC9~24V |
