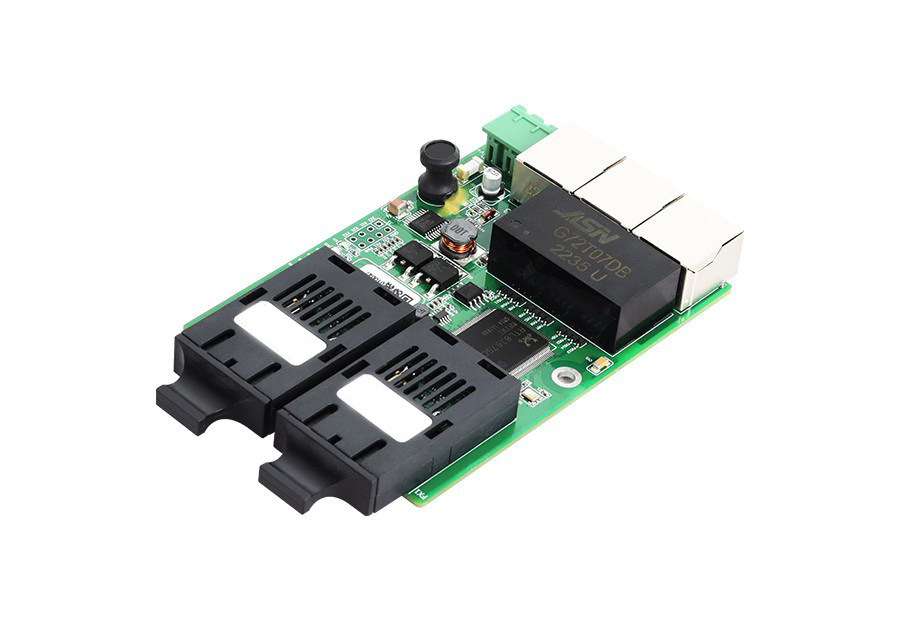

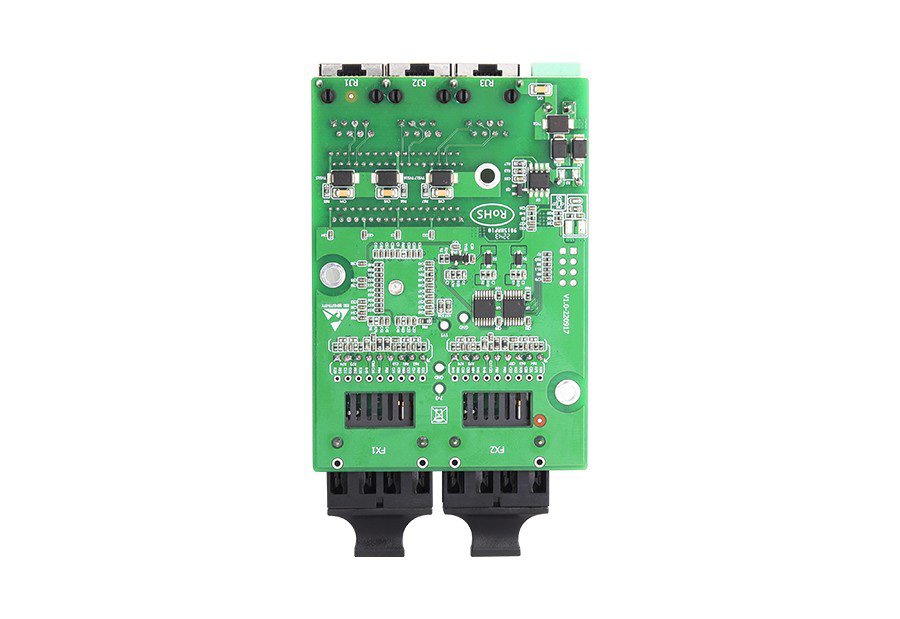

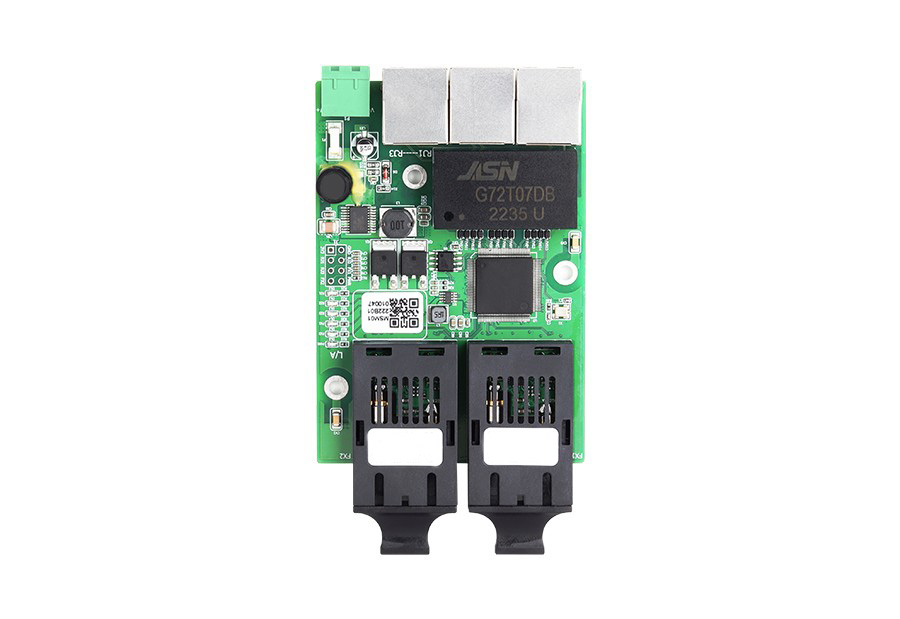

CES3105GA-2G-3GT
5-Port Layer 2 Full Gigabit Unmanaged Embedded Industrial Ethernet Switch
·Support 2*1G fiber ports and 3*1G copper ports, providing users with flexible networking methods
·Fiber port supports SC/FC/ST connectors, single-mode/multi-mode, wavelength, and transmission distance are optional.
·Copper port supports 10/100/1000M, full/half duplex, MDI/MDI-X adaptive connection
·Support DC9~24V input voltage and complies with intrinsically safe circuit design standards
·Support -40℃~+70℃ operating temperature
5-Port Layer 2 Full Gigabit Unmanaged Embedded Industrial Ethernet Switch
·Support 2*1G fiber ports and 3*1G copper ports, providing users with flexible networking methods
·Fiber port supports SC/FC/ST connectors, single-mode/multi-mode, wavelength, and transmission distance are optional.
·Copper port supports 10/100/1000M, full/half duplex, MDI/MDI-X adaptive connection
·Support DC9~24V input voltage and complies with intrinsically safe circuit design standards
·Support -40℃~+70℃ operating temperature
Product Description
CES3105GA-2GF-3GT is a 5-port Layer 2 full Gigabit unmanaged embedded industrial Ethernet switch for industrial communication network applications. It meets intrinsically safe design requirements. This product supports 2x1G fiber ports and 3 Gigabit copper ports, supports 1 DC9~24V input voltage. The power supply supports anti-reverse connection, slow start, over-current and over-voltage protection. Each Gigabit copper port has 10/100/1000M adaptive function, supports full-duplex or half-duplex mode, and can automatically perform MDI/MDI-X connection, making industrial communications more smooth, more reliable, and faster. The hardware adopts a fanless, intrinsically safe, wide-temperature design, with selected industrial-grade components, supporting -40~+70℃ operating temperature. The power supply complies with intrinsically safe circuit design standards, and has passed strict safety and EMC tests to meet the harsh industrial environment application requirements. Products can be widely used in industrial automation, integrated energy, intelligent transportation, smart cities, smart mines and other fields.
Switch Capability | |
Processing Type | Store-and-Forward |
Backplane Bandwidth | 14Gbps |
Buffer Size | 2Mbit |
MAC Table Size | 2K |
Interface | |
1G Fiber Port | 2*1000Base-X 1G fiber port, supporting SC/FC/ST connectors, single-mode/multi-mode, wavelength, and transmission distance optional |
1G Copper Port | 3*10/100/1000Base-T(X) adaptive copper ports, supporting full/half duplex, auto MDI/MDI-X |
Status LED | Power supply status LED Interface status LED Support external export of status LED signal |
Power Supply | |
Input Voltage | DC9~24V |
Power Consumption | ＜3W@DC12V |
Connection | 2-pin 5.08mm pitch terminal blocks |
Physical Characteristics | |
Dimensions | 94×66×14.6mm |
Installations | Embedded installation |
Weight | About 100g |
Working Environment | |
Operating Temperature | -40℃~+70℃ |
Storage Temperature | -40℃~+85℃ |
Relative Humidity | 5%~95%(non-condensing) |
Industrial Standard | |
Certification | CE, FCC, RoHS |
| Name | Version | Resources |
| CES3105GA-2GF-3GT Datasheet | V1.0 | Download |
Standard Model | 1G Fiber Port | 1G Copper Port | Input Voltage |
CES3105GA-2GF(M/S)-3GT | 2 | 3 | DC9~24V |
