System Overview

Industrial automation system is the combination of a variety of systems like automatic measuring instruments and control devices, Including several control systems such as supervisory control and data acquisition (SCADA) systems, distributed control systems (DCS), and programmable logic controllers (PLC). They are used to provide automated or partially automated control of the equipment in manufacturing and chemical plants, electric utilities, distribution and transportation systems, and many other industries.

COME-STAR Solution

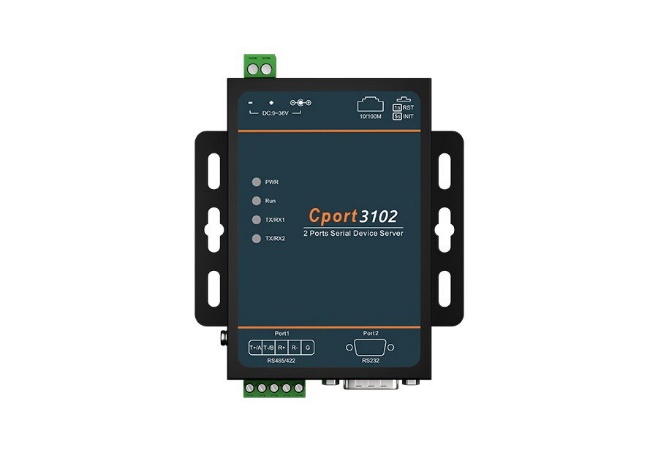

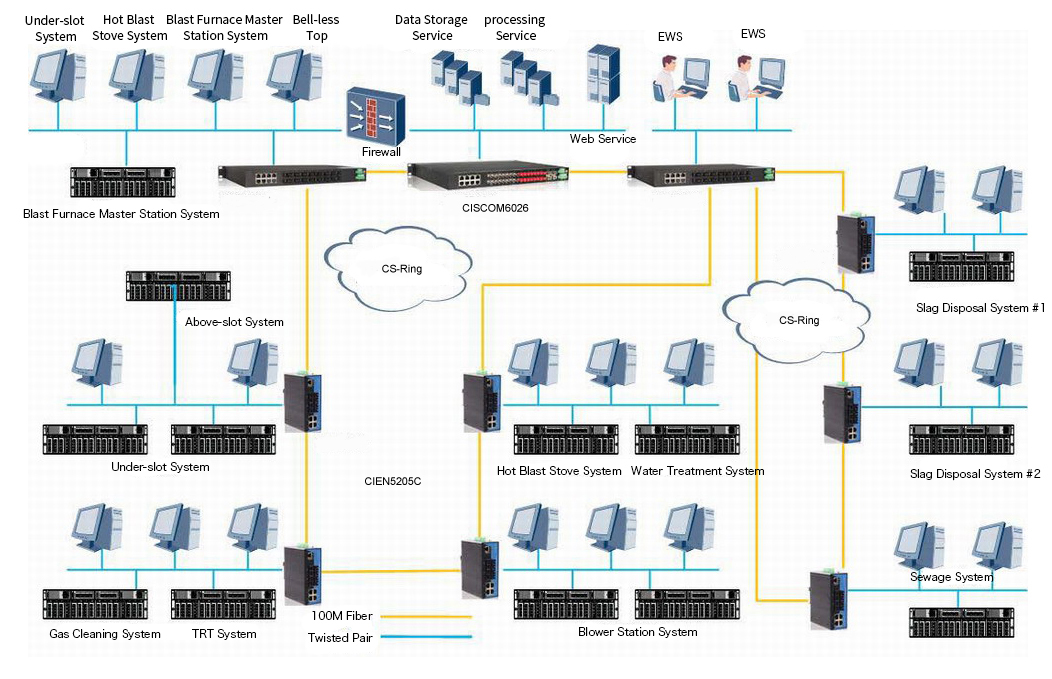

Industrial automation control system adopts COME-STAR CISCOM6026 100M managed rack-mount industrial Ethernet switch, CIEN5205C managed din-rail industrial Ethernet switch and Cport3102 serial Ethernet server to network. Cport3102 serial Ethernet server which can connect with automation equipment directly supports one Ethernet interface and two serial ports to data exchange. It sends the information collected by sensor to control station via CIEN5205C and CISCOM6026, at the same time, transmitting control station information to PLC and other automation equipment to realize unified management and automation control of automation and sensing equipment.

‍
