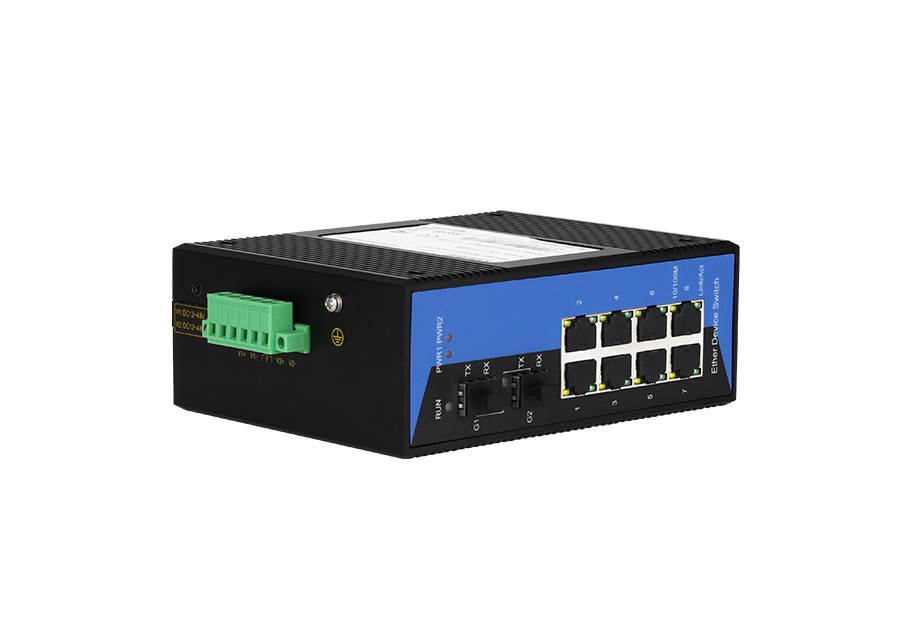

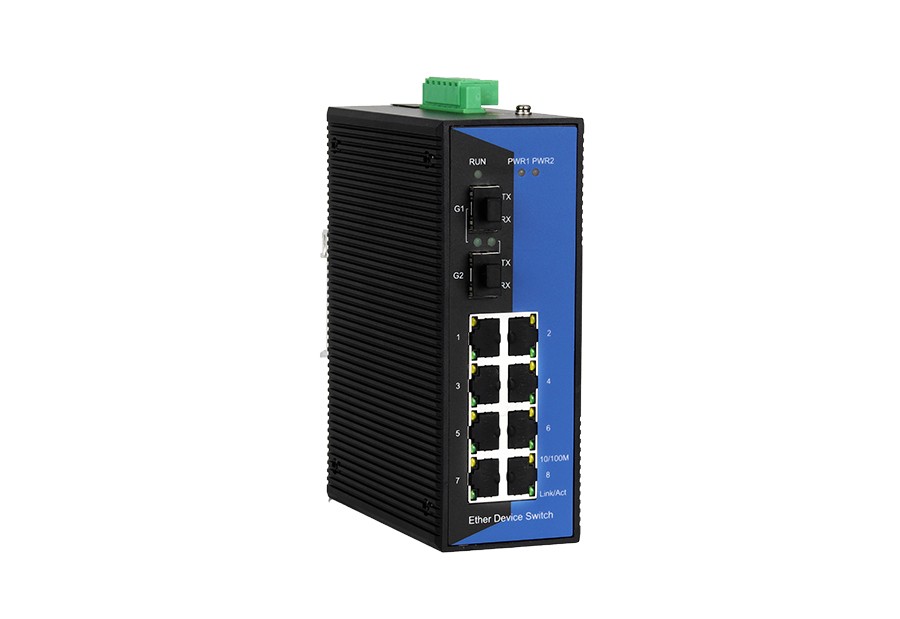

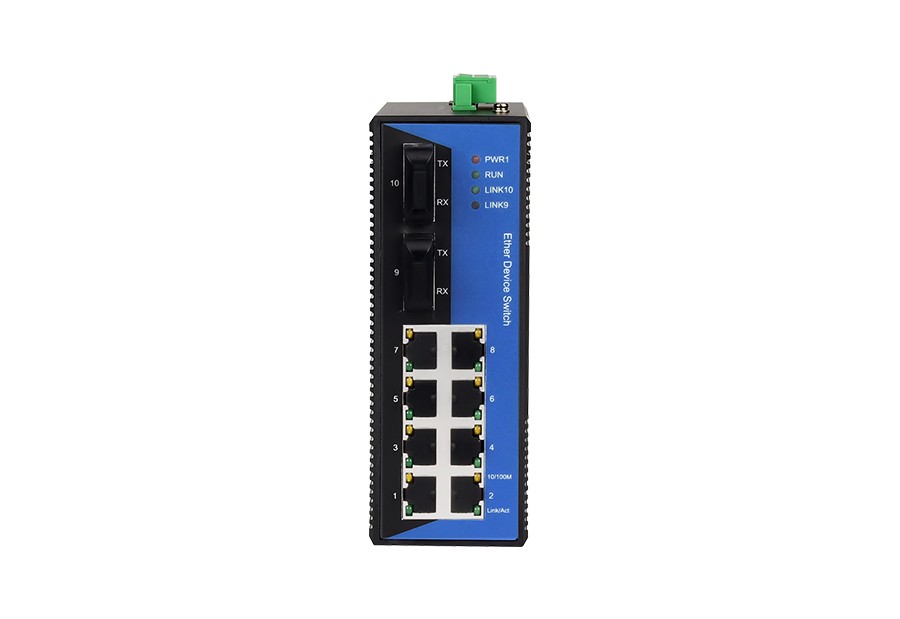

CIEN2210 Series
10-Port Layer 2 100M Unmanaged DIN Rail Industrial Ethernet Switch
·2×100Base-FX ports + 8×10/100Base-T(X) ports or 2*10/100Base-T(X) copper ports + 8*100Base-FX fiber ports
·100Base-FX ports support SC/ST/FC, single-mode/multi-mode, wavelength, and transmission distance optional
·10/100Base-T(X) ports support full/half duplex and auto MDI/MDI-X, plug and play, convenient and fast
·Support relay alarm when the system is powered off
·Support single AC85~264V/DC110~370V power supply, or dual DC9~60V redundant power input
·With IP40 High-strength metal casing and fanless design, the device can reliably work in harsh industrial environment of -40°C to +85°C
10-Port Layer 2 100M Unmanaged DIN Rail Industrial Ethernet Switch
·2×100Base-FX ports + 8×10/100Base-T(X) ports or 2*10/100Base-T(X) copper ports + 8*100Base-FX fiber ports
·100Base-FX ports support SC/ST/FC, single-mode/multi-mode, wavelength, and transmission distance optional
·10/100Base-T(X) ports support full/half duplex and auto MDI/MDI-X, plug and play, convenient and fast
·Support relay alarm when the system is powered off
·Support single AC85~264V/DC110~370V power supply, or dual DC9~60V redundant power input
·With IP40 High-strength metal casing and fanless design, the device can reliably work in harsh industrial environment of -40°C to +85°C
Product Description
CIEN2210 series is a 10-port 100M unmanaged industrial Ethernet switch designed and developed for industrial communication network applications. It is mainly used for simple plug-and-play applications. This series of products provides 2×100Base-FX ports and 8×10/100Base-T(X) ports or 2*10/100Base-T(X) copper ports and 8*100Base-FX fiber ports, and support multiple power supply options such as DC power input or AC power input. The product which selects industrial-grade components, 35mm standard rail-type installation, high-strength metal casing, sturdy and durable, fanless casing for heat dissipation, -40°C to +85°C wide temperature operation, high-standard industrial protection design, is able to adapt to various harsh conditions working environment and stable communication performance. The products can be widely used in industrial automation, integrated energy, smart cities, smart transportation, smart factories and other industrial fields.
Switching | |
Backplane Bandwidth | 2Gbps |
Buffer Size | 1Mbit |
MAC Table Size | 8K(2F) 2K(8F) |
Interface | |
100M Fiber Port | 2/8*100Base-FX 100M fiber ports (SC/FC/ST, single-mode/multi-mode, wavelength, and transmission distance are optional) |
100M Copper Port | 8/2* 10/100Base-T(X) auto-sensing 100M RJ45 ports, support full/half duplex and auto MDI/MDI-X |
Status LED | Power indicator, FX port indicator, TX port speed and connection/activity status indicator |
Power Supply | |
Input Voltage | DC model: DC12~48V or DC48V (36~72V) optional, support dual power input, reverse connection protection AC model: Single AC85~264V/DC110~370V power supply |
Power Consumption | ＜3.5W@DC24V (2F) <5.3W@DC24V (8F) |
Physical Characteristics | |
Dimensions | 144×54×110.4 mm (DIN rail mounting clip excluded) |
Installations | Easy installation on 35mm DIN rails |
Weight | About 0.64kg |
Working Environment | |
Operating Temp | -40℃~ +85℃ |
Storage Temp | -40℃~ +85℃ |
Relative Humidity | 5%~95% (non-condensing) |
Industry Standard | |
EMC | IEC 61000-4-2 (ESD): Level 4 IEC 61000-4-5 (Surge): Level 4 ※ Ethernet port supports 6kV lightning protection IEC 61000-4-4 (EFT): Level 4 |
Certification | CE, FCC, RoHS |
Name | Version | Resources |
CIEN2210 Series Datasheet | V1.0 |
Standard Model | 100M Fiber Port | 10/100M Copper Port | Input Voltage |
CIEN2210-2F(M/S) | 2 | 8 | Dual DC12~48V power input |
CIEN2210-2F(M/S)-DC48 | 2 | 8 | Dual DC36~72V power input |
CIEN2210-2F(M/S)-AD220 | 2 | 8 | Single AC85~264V/DC110~370V |
CIEN2210-8F(M/S) | 2 | 8 | Dual DC12~48V power input |
CIEN2210-8F(M/S)-AD220 | 2 | 8 | Single AC85~264V/DC110~370V |
