Product Description

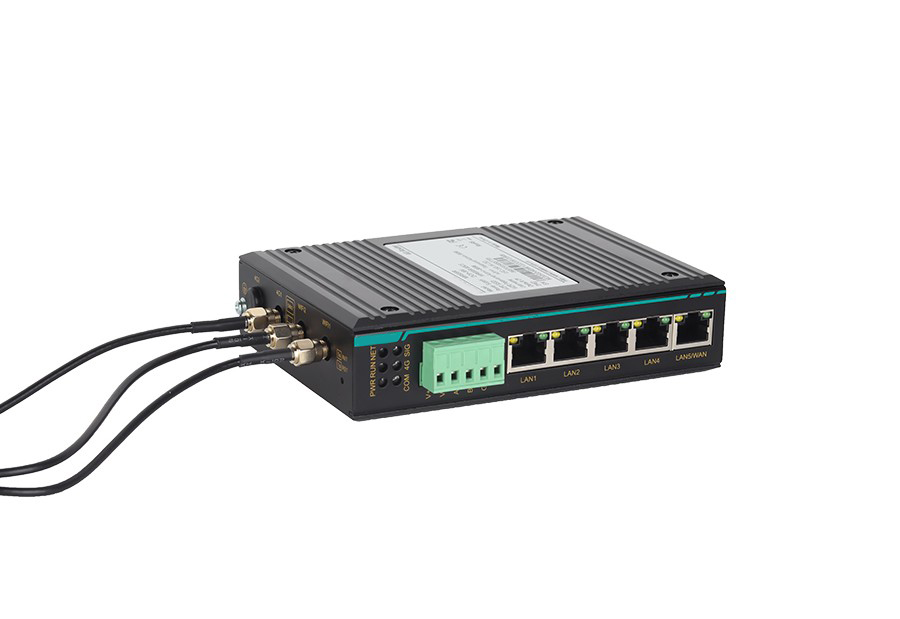

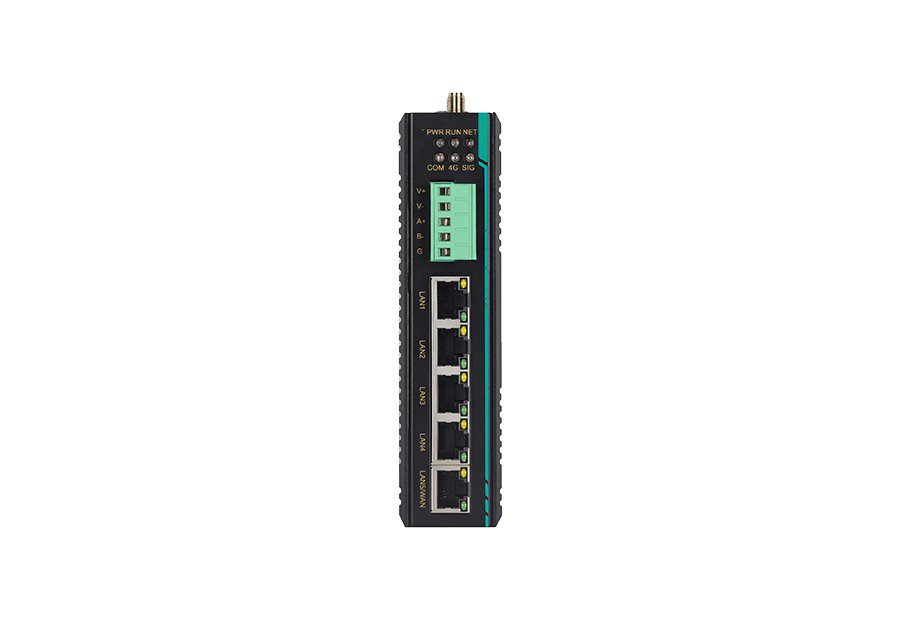

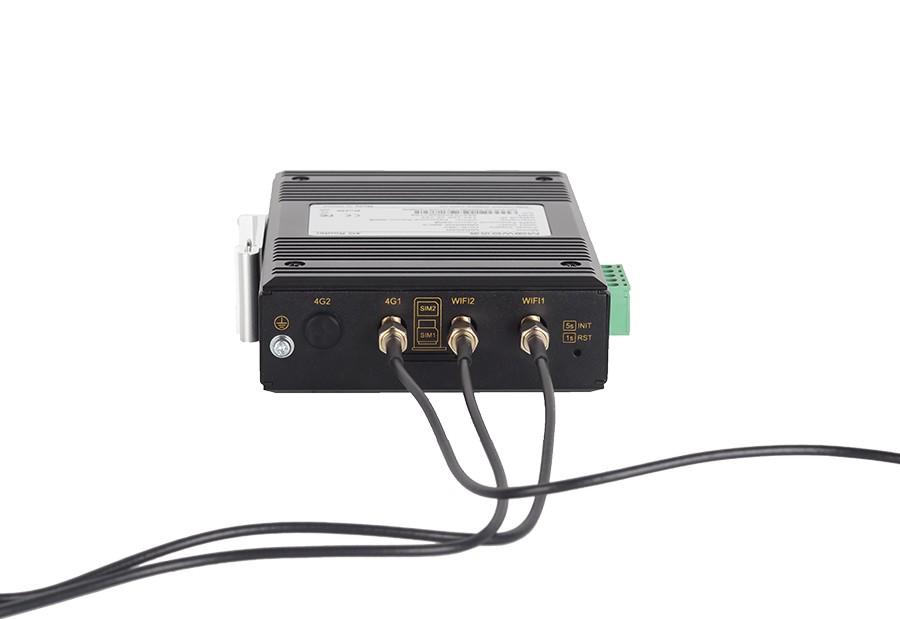

CIR655R-W is a 5-port 10/100Base fast Ethernet DIN-rail mounted industrial 4G wireless router developed for industrial network applications, supporting LAN, WAN, WLAN, 4G LTE and other multi-network online, intelligent switching of multi-network backups, and networking of serial, wireless, and wired terminal devices. The industrial router provides 1×10/100Base-T(X) WAN/LAN combo port, 4×10/100Base-T(X) LAN port, 1×RS485 serial port, 1~2 4G antenna interface and 2×2.4GHz antenna interfaces. The DIN-rail mountable router, with 1 DC 9~36V power input, can meet the needs of a variety of network scenarios.

The industrial 4G router supports WEB management of a variety of functions, such as PPPoE dialing, DHCP server, 4G network, wireless settings, IP/MAC binding, static routing, firewalls, VPN, serial to Ethernet, network diagnostics, SNMP, LLDP, cloud services, etc.; Its system provides user permission management, supports local/remote log management, scheduled reboot, configuration backup and recovery, firmware upgrade, factory reset. The router adopts high-standard industrial protection design, selects industrial-grade components, and uses high-strength aluminum alloy casing to make it solid and durable. It features low power consumption, -40 ℃ ~ +70 ℃ wide temperature durability, fanless metal case cooling. It has passed strict safety regulations and EMC tests to meet the requirements of severe industrial environment applications, so that it can be widely used in industries such as industrial automation, comprehensive energy, smart cities, intelligent transportation, smart mines, smart factories, and more.

Product Features

l   Support 4G cellular wireless network, 2.4G Wi-Fi wireless network and WAN port wired network, support multi-network backup

l   WAN port supports DHCP, static IP addresses, PPPoE dial-up, and works as LAN port

l   LAN port supports DHCP server, user IP addresses can be dynamically managed and configured in a centralized way

l   Support 4G LTE, backward compatible with 2G/3G services, support dual card single standby, APN

l   Support link detection and recovery

l   WLAN supports wireless AP mode, Client mode, AP+Client mode

l   Support IPv4/IPv6 Ping, IPv4/IPv6 Traceroute, Nslookup, packet capture

l   Support defense against SYN-flood, port mapping, IP/MAC/DNS filter, iptables command custom rules, DMZ (Demilitarized Zone), UPnP, IP/MAC traffic throttling, QoS traffic throttling

l   Logs contain information about the kernel messages, applications and network, support download, autosave, remote monitor

l   Serial port supports UDP, UDP Multicast, Modbus RTU Master/Slave, Modbus ASCII Master/Slave, RealCOM_MCP/CCP/MW, Pair Connection Master/Slave, Httpd Client, WebSocket Client, MQTT to enable conversion from serial to Ethernet or Modbus RTU/ASCII

l   Support peanut shell intranet penetration and dynamic domain name resolution DDNS

l   Support dynamic DNS, user can login and manage device remotely by specifying the domain name

l   Support VPN client and server to build a private network. The client supports tunnel protocols such as PPTP, L2TP, IPSec, OpenVPN, GRE, and SSTP. The server supports protocols such as PPTP, L2TP, and IPSec

l   Support SNMPv1/v2c, use MIB browser to view, modify, and troubleshoot

l   Support LLDP, obtain the LLDP neighbor information, monitor link status, maintain topology and locate fault

l   Support COME-STAR cloud platform management to realize remote management of equipment and monitoring of on-site network status
