Product Description

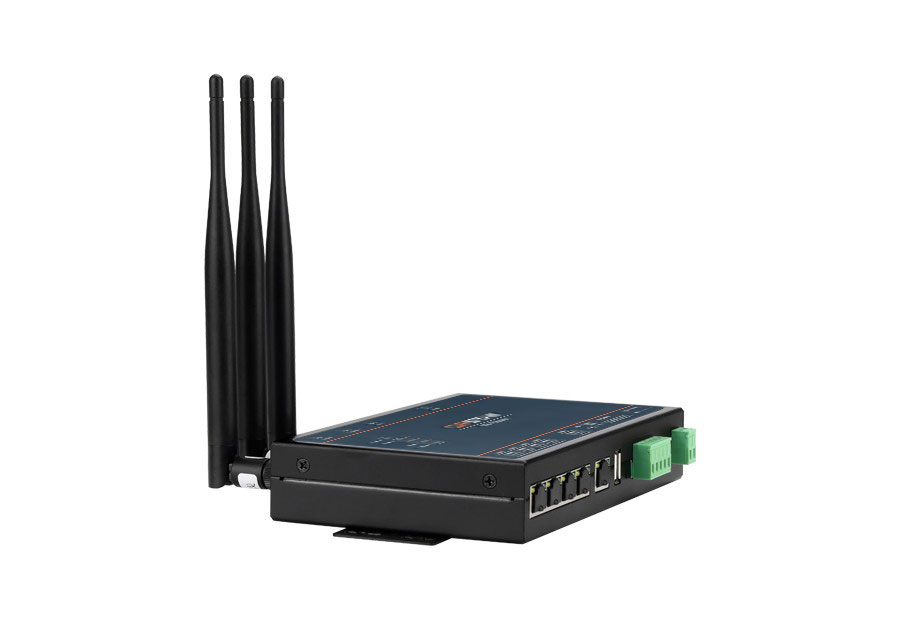

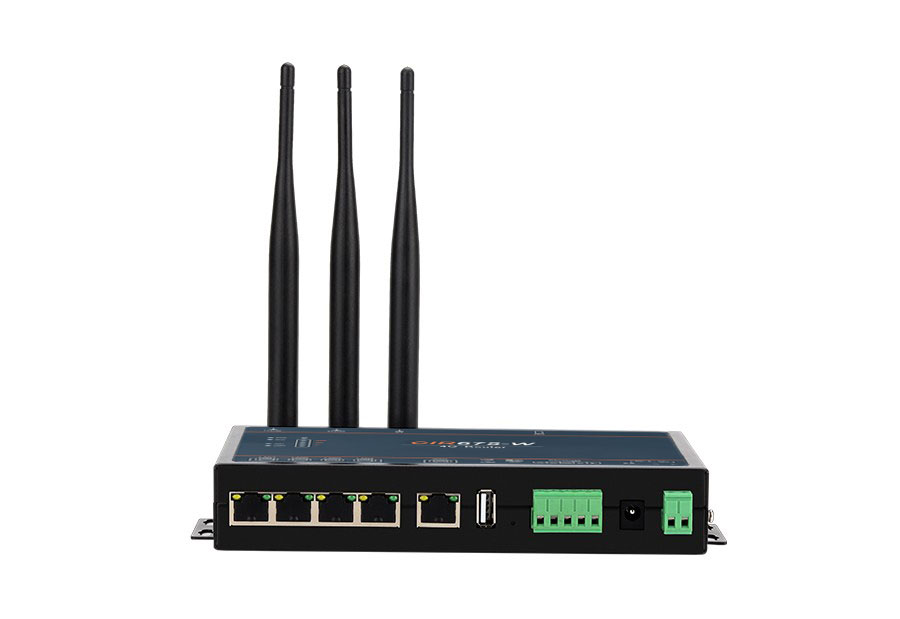

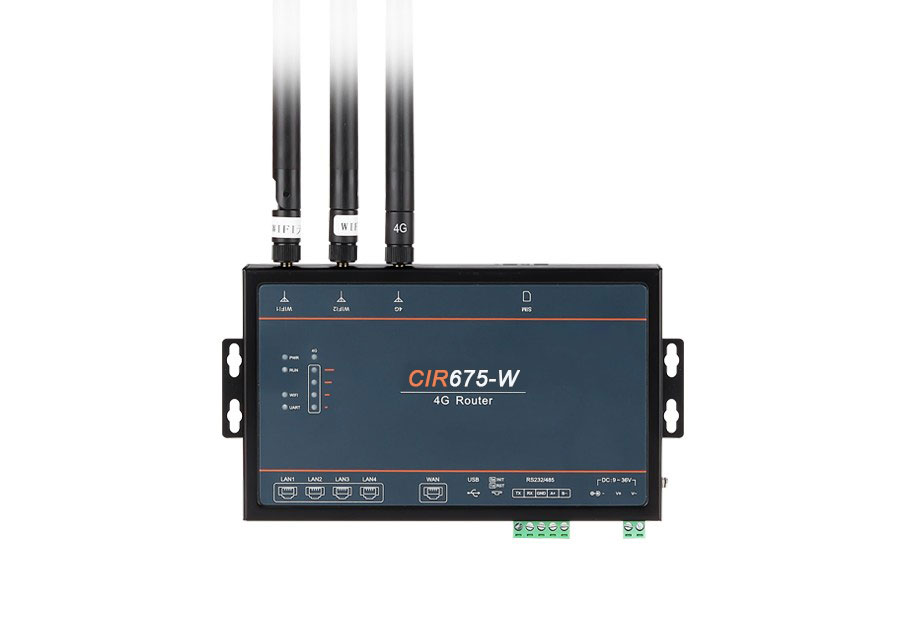

CIR675 series is a 5*100M ports wall-mount 4G wireless industrial router specially designed and developed for industrial communication network applications. It supports multiple online networks such as LAN, WAN, WLAN, and 4G LTE. It can intelligently switch multiple network backups and realize serial port, networking of wireless and wired terminal equipment. This series of products provide 1*100M WAN port, 4*100M LAN ports, 1*RS232/485 serial port, 1/2*4G antenna, 2*2.4GHz antennas, 1*USB and other types of interfaces, supporting 1*DC9~36V power input, wall-mount installation method, meeting the needs of various network sites. MIR675-WB supports dual 4G module hot backup, full network connectivity.

The product supports WEB configuration of a variety of network management functions, such as PPPoE dial-up, DHCP server, 4G network, wireless settings, IP/MAC binding, static routing, firewall, VPN, serial port to network, network diagnosis, SNMP, LLDP, cloud services, etc.; The system provides user management with different permissions, supports local/remote log management, and supports scheduled restart, configuration backup and recovery, firmware upgrade, and factory settings restoration. The hardware adopts high-standard industrial protection design, with selected industrial-grade components and high-strength metal casing, which is sturdy and durable; supports -20℃~+70℃ operating temperature, and has passed strict safety and EMC testing to meet the application requirements of harsh industrial environments.

Product Features

l   Support 4G cellular wireless network, Wi-Fi wireless network and WAN port wired network, and support multi-network backup

l   The WAN port supports DHCP protocol, static address, PPPoE dial-up, etc. to connect to the external network, or can be used as a LAN port to connect to the intranet

l   The LAN port supports DHCP server to centrally dynamically manage and configure user IP addresses.

l   Support 4G cellular network, compatible with 2G/3G, support three networks, dual SIM dual standby (some models), APN

l   Support link check, periodically check 4G network link status, and perform link recovery

l   WLAN supports AP, Client or AP+Client modes, which can realize wireless terminal access, wireless network access or bridging

l   Support IPv4/IPv6 Ping, IPv4/IPv6 Traceroute, Nslookup, packet capture, and can perform network diagnosis or fault analysis

l   The firewall supports SYN-flood defense, port mapping, IP/MAC/domain name filtering, iptables command custom rules, DMZ isolation zone, UPnP, IP/MAC speed limit, QoS limit upload/download rate and other functions

l   Log information records multiple levels of kernel, application and network information, and support local downloading, scheduled saving, and remote monitoring

l   The serial port supports UDP, TCP Client/Server, UDP Multicast, Modbus RTU Master/Slave, Modbus ASCII Master/Slave, Realcom MCP/CCP/CS, Pair Connection Master/Slave, Httpd Client, WebSocket Client, MQTT and other serial port conversion modes. , realize serial port to Ethernet or Modbus RTU/ASCII protocol

l   Support Peanut Shell intranet penetration, and can use Peanut Shell dynamic domain name to remotely log in and manage devices

l   Support dynamic DNS function, allowing remote login and management of devices through designated domain names

l   Support VPN client and server to build a private network. The client supports tunnel protocols such as PPTP, L2TP, IPSec, OpenVPN, and GRE. The server supports protocols such as PPTP, L2TP, and IPSec

l   Support RTC hardware clock and NTP network automatic time adjustment

l   Support SNMPv1/v2c, information query, information modification and troubleshooting can be carried out through MIB to achieve centralized management

l   Support LLDP, obtains LLDP neighbor device information, and monitors link status to facilitate topology management and fault location.

l   Support COME-STAR cloud platform management to realize remote management of equipment and monitoring of on-site network status
