Product Description

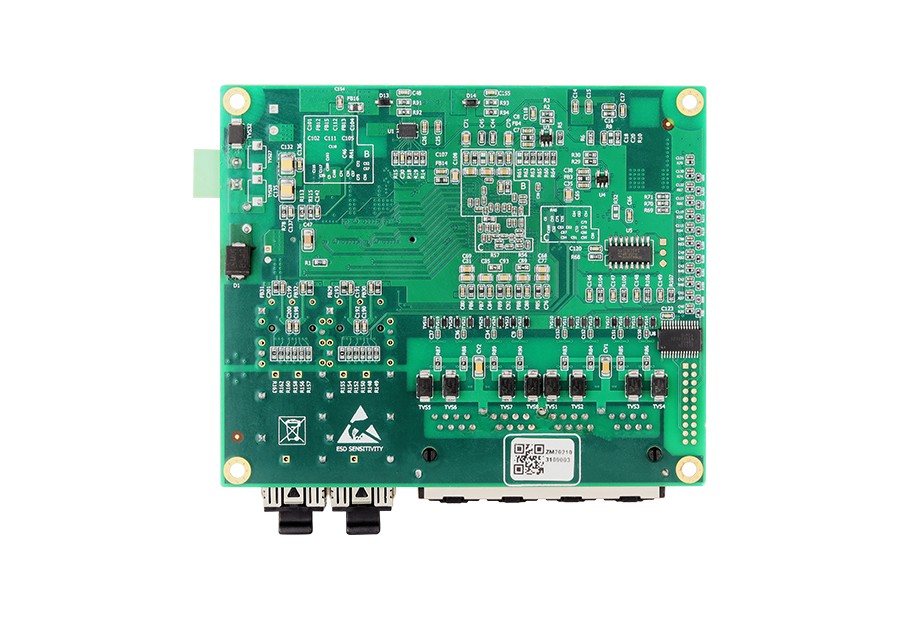

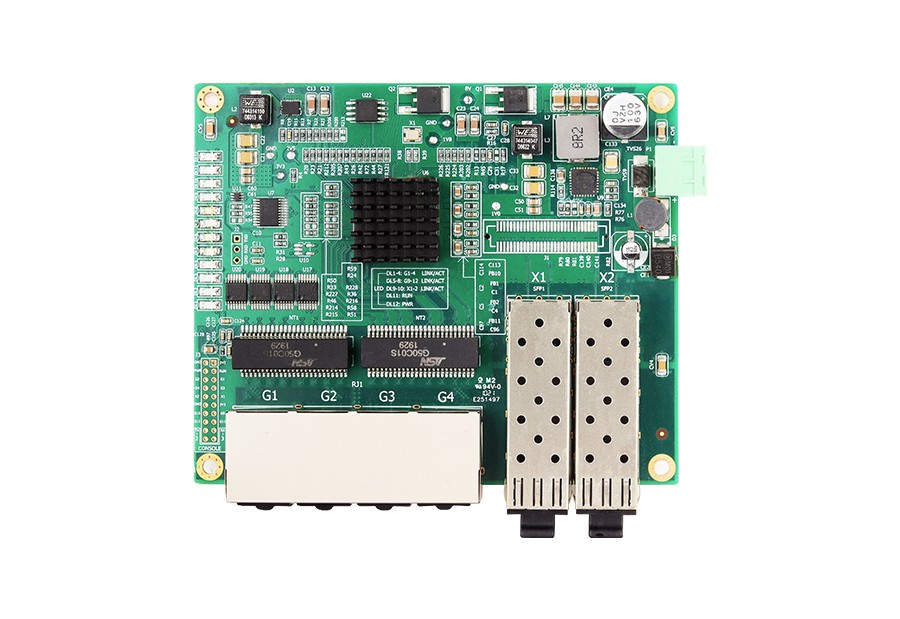

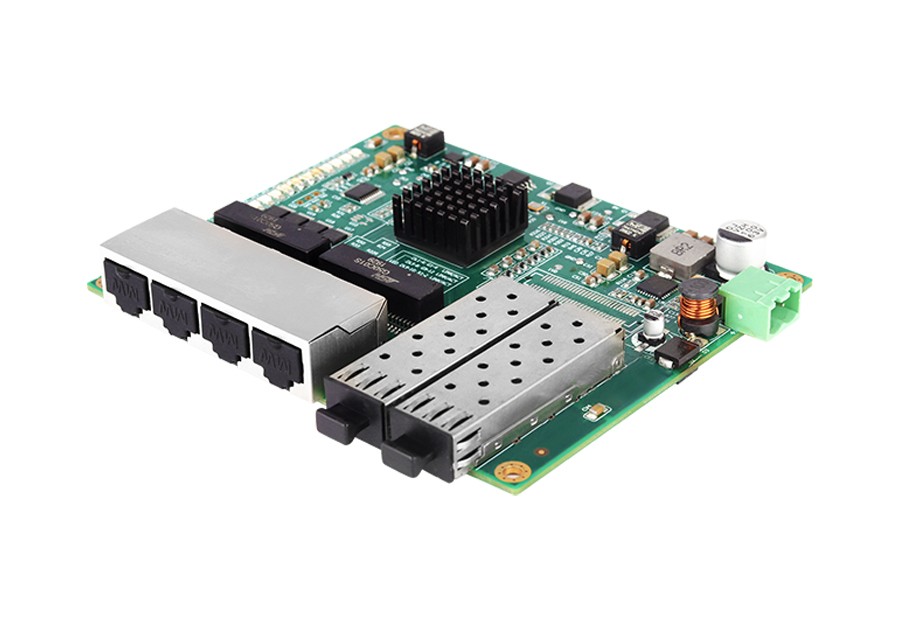

CES7106G-3GF-3GT is a layer 2 managed embedded industrial Ethernet switch, designed for industrial applications. It supports 3*1G SFP ports and 3*1G copper ports. This switch utilizes a store-and-forward mechanism, providing robust bandwidth processing capabilities while automatically detecting and reducing transmission errors, ensuring stable, reliable, and efficient data transfer. The product adopts industrial-grade components, high-standard system design, and production control. It can operate reliably in a wide temperature range from -40°C to +75°C. It is suitable for challenging work environments, ensuring stable communication performance.

CES7106G-3GF-3GT supports a range of features and network protocols, including CS-Ring v1/v2, STP/RSTP, VLAN, QoS, static aggregation, port mirroring, static multicast MAC address binding, network diagnostics, alarm and online firmware upgrades. These capabilities enhance network performance, reliability, and security, making it suitable for various complex network requirements. It also supports multiple network transmission modes such as UDP, TCP Client, TCP Server, UDP multicast, etc. to realize CAN/serial terminal device networking. The product has undergone rigorous testing for functionality, temperature resilience, safety compliance, and electromagnetic compatibility (EMC). It meets the demands of complex networks and harsh industrial environments and can be widely applied in areas such as comprehensive energy, smart cities, rail transportation, intelligent traffic, smart factories, industrial automation, and more.

Product Features

• Support rate limiting on egress and ingress packets of broadcast, unknown multicast, and unknown unicast

• Support rate limiting on broadcast and multicast packets and unknown multicast, unicast packets to avoid network storms

• Support QoS (Quality of Service) to prioritize voice, video, and critical data transmission within network devices, addressing network congestion

• Support 802.1Q VLAN, providing Access, Trunk, and Hybrid interfaces for easy division of multiple broadcast domains, enhancing network security

• Support static multicast MAC address binding, reducing the broadcast of multicast data in the network and saving network resources.

• Support static link aggregation, which can increase transmission bandwidth and improve link reliability

• Support alarm function, including alarms such as port disconnection and ring network status

• Support port mirroring to collect data from port ingress and egress for network detection and fault management

• Support RSTP (Rapid Spanning Tree Protocol) compatible with STP (Spanning Tree Protocol) to eliminate network loops and enhance network reliability

• Serial/CAN port supports UDP or UDP multicast mode. Point-to-point, point-to-many or many-to-many communication can be achieved through UDP protocol, which is fast and efficient

• The serial/CAN port supports TCP Client/Server mode, establishing connections through the TCP protocol, providing reliable data transmission. TCP Client can establish 1 connection, and TCP Server can establish up to 4 connections

• Support multiple subcontracting mechanisms to realize CAN/serial port conversion to Ethernet to meet the real-time needs of different networks

• CAN supports normal mode, loopback mode and listening mode, which can be used for normal communication, bus testing and troubleshooting respectively

• Support CAN ID filtering, allowing transmission of standard frames or extended frames within a specified ID range

• Support port statistics, count different types of data frames sent and received, and monitor port traffic

• Support user permission management, like guest and administrator

• Support device online restart, factory settings restoration and system upgrade
