Product Description

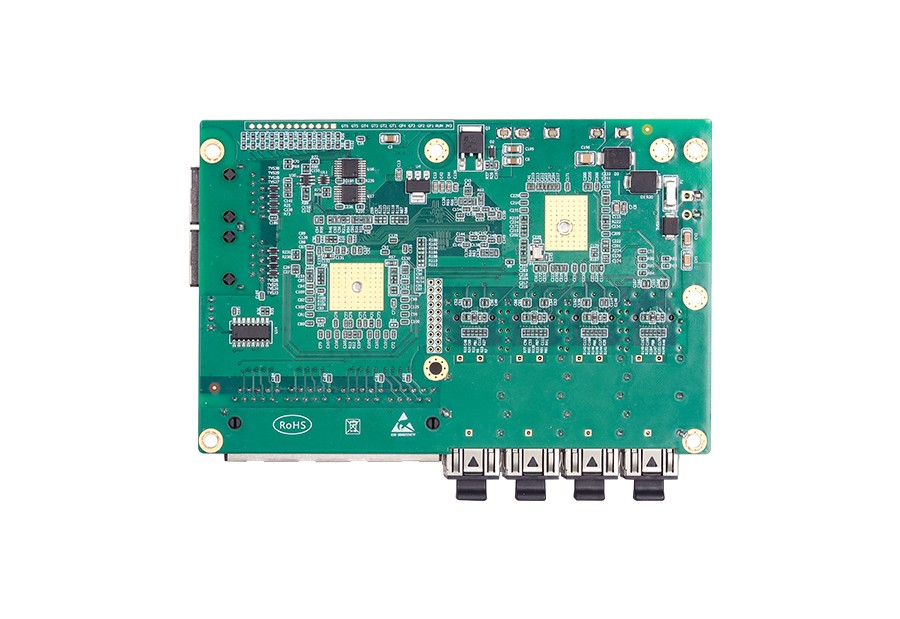

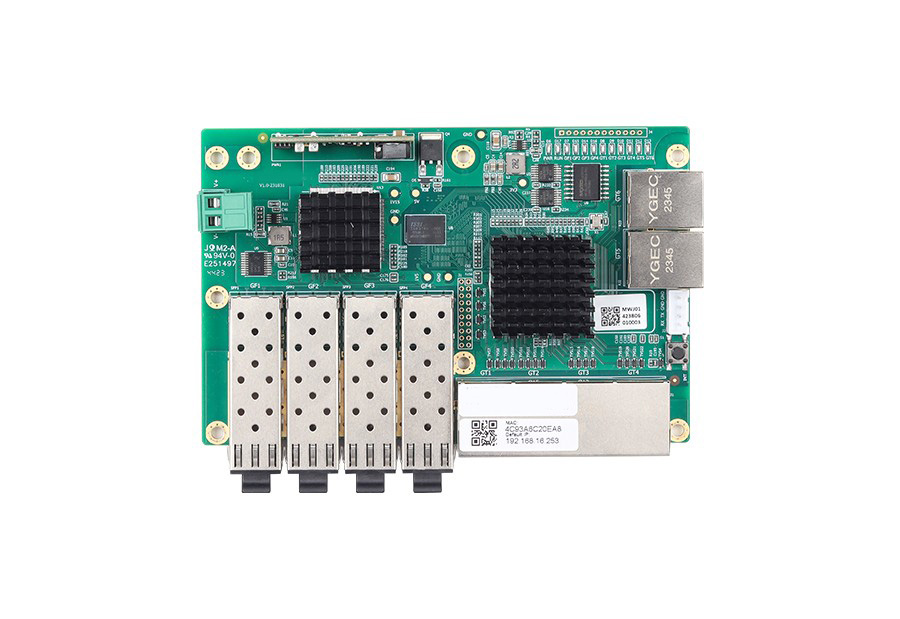

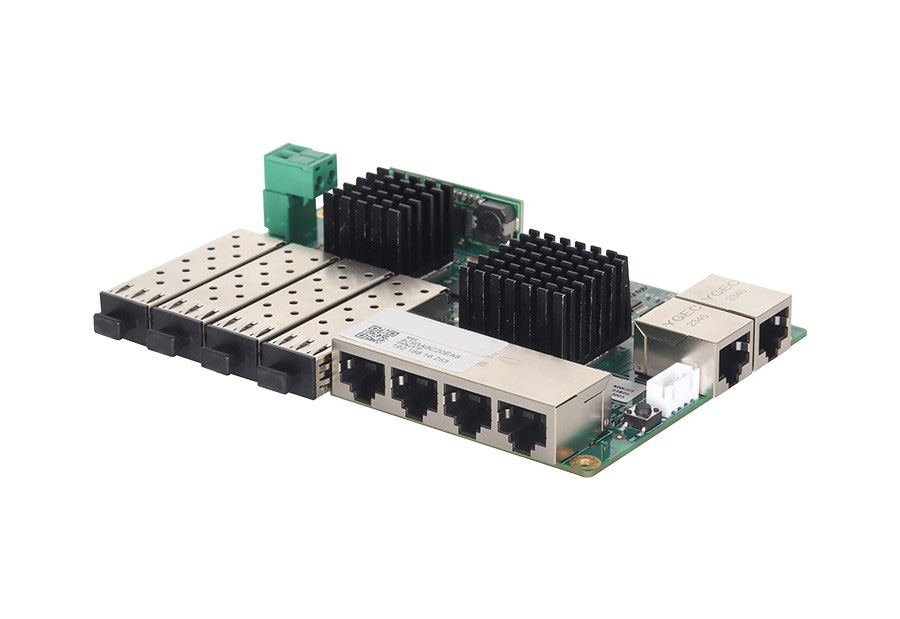

CES7110G-4GF-6GT is a 10-port layer 2 gigabit managed industrial ethernet switch. It supports single DC9~24V power input and anti-reverse connection to cater to various industrial network sites.

CES7110G-4GF-6GT managed switch supports WEB network management functions and multiple network protocols, such as CS-Ringv1/v2, ERPS, STP/RSTP, VLAN, LACP, IGMP-Snooping, LLDP, SNMPv1/v2c/v3, RMON, QoS, ACL, 802.1X authentication, port mirroring, storm detection, network diagnosis, loopback diagnosis and online firmware upgrade, etc.; the system provides user management with different permissions and supports online restart, upgrade and factory settings restoration. The hardware adopts a wide-voltage design. It adopts selected industrial-grade components and supports operating temperatures of -40℃~+75℃. The power supply meets the requirements of intrinsically safe circuit design standards and has passed strict safety regulations and EMC tests, to meet the application requirements of harsh industrial environments. The industrial switch can be widely used in industrial automation, integrated energy, intelligent transportation, smart cities, smart mines and other fields.

Product Features

• Support storm suppression for broadcast, multicast, and unknown unicast messages, detect broadcast and multicast packet storms, and prevent broadcast storms

• Support link static aggregation and dynamic aggregation LACP, which can increase transmission bandwidth, improve link reliability and realize network load balance

• Support 802.1Q VLAN, provide Access, Trunk, Hybrid interface easy to divide multiple broadcast domain, enhance the security of the network

• Supports IGMP snooping and static multicast tables, and establishes a Layer 2 multicast forwarding table to reduce the broadcast of multicast data in the network and save network resources.

• Support LLDP link layer discovery protocol, obtains LLDP neighbor device information, monitors link status, facilitates topology management and fault localization

• Support ERPS Ethernet multi ring protection technology, provide multi ring networking, perform link backup, achieve fast convergence, and improve network stability

• Support STP, RSTP, MSTP generating tree protocol, which can eliminate network loop and improve network reliability

• Support SNMPv1/v2c/v3, information query, information modification and troubleshooting through the MIB network management system, to achieve centralized management

• Supports RMON remote network monitoring, performs statistics and alarms on various types of data frames, and can be used for remote monitoring and management of network management systems

• Support QoS service quality, give priority to voice, video and important data in network devices, and solve network congestion

• Support ACL access control list, filtering TCP/UDP/ICMP/IGMP messages based on source/destination IP and MAC address

• Support 802.1X port authentication, authentication and access control for access users

• Supports loopback detection to prevent network loops from causing network storms
